Description

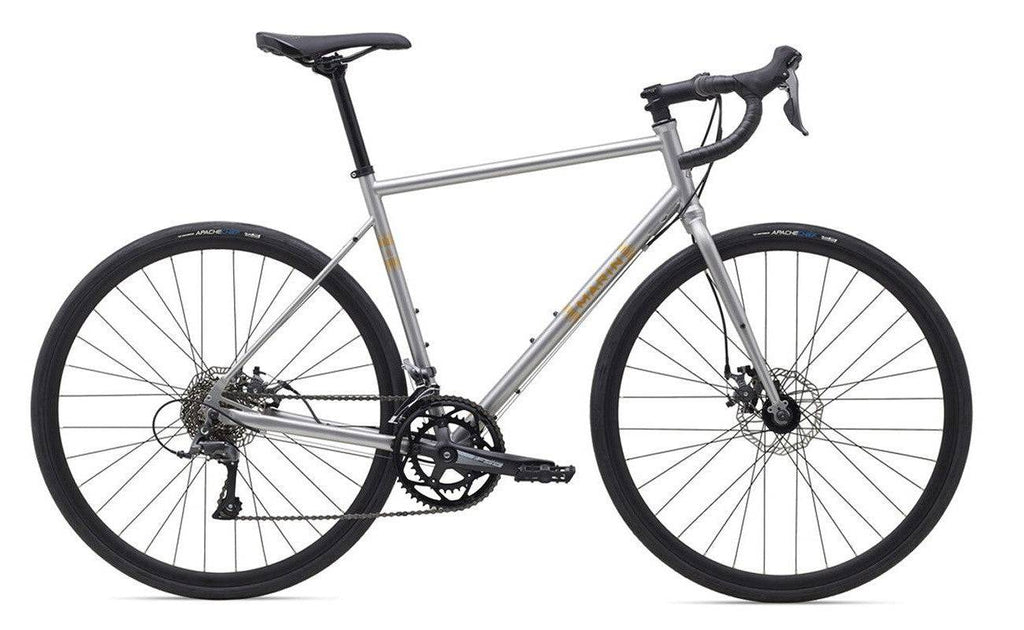

marin steel gravel bike Marin Bikes NicasioADVENTURE ROAD AND OFF ROAD RIDING Long Distance Commuting Endurance and All Weather Pavement The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm (up to 40mm) tires to let riders handle any surface. Wheel Size: 700C Frame: CroMo Steel Size Range: 47, 50, 52, 54, 56, 58, 60 Size Rider height
ADVENTURE ROAD AND OFF-ROAD RIDING
Long-Distance Commuting - Endurance and All-Weather Pavement
The Nicasio is for the rider looking for something different and modern, yet with traditional steel construction. Classic lines and CrMo frame tubes have the soul of a classic bike, with the geometry and 700C x 30mm (up to 40mm) tires to let riders handle any surface.
- Wheel Size: 700C
- Frame: CroMo/Steel
- Size Range: 47, 50, 52, 54, 56, 58, 60
| Size | Rider height range |
|---|---|
| 47cm | 4'10" to 5'0" |
| 50cm | 5'0" to 5'3" |
| 52cm | 5'3" to 5'6" |
| 54cm | 5'6" to 5'9" |
| 56cm | 5'9" to 6'0" |
| 58cm | 6'0" to 6'2" |
| 60cm | 6'2" to 6'4" |
Additional Shipping Charges Apply
This shipment originates from our distribution center in Bangalore, India. Any orders received out of Bangalore will attract a nominal shipping charge, to be decided after the order is placed and when the product is ready for dispatch - by checking the volumetric weight of the shipment box. Applicable shipping charges by the transporter will be communicated and to be paid before the dispatch.
Specifications
- Frame: Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
- Fork: CrMo, Fender and Rack Eyelets, IS Disc Mount
- Rims: Marin Aluminum Double Wall, 19mm Inner, Disc Specific
- Hub, Rear: Forged Aluminum Alloy, 32H
- Hub, Front: Forged Aluminum Alloy, 32H
- Spoke, Nipples: 14g Black Stainless Steel
- Tires: Vee Tire, Apache Chief, 700Cx30, Wire Bead
- Derailleur, Rear: Shimano Claris 8-Speed
- Derailleur, Front: Shimano Claris
- Shift Lever: Shimano Claris 2x8-Speed
- Crankset: FSA Tempo Compact, 50/34T
- Bottom Bracket: Sealed Cartridge Bearings, Square Taper
- Chain: KMC Z-8.3
- Cassette: SunRace 8-Speed, 11-32T
- Brake, Front: Promax Render R Road Mechanical Disc, 160mm Rotor
- Brake, Rear: Promax Render R Road Mechanical Disc, 160mm Rotor
- Brake Levers: Shimano w/ Integrated Shifters
- Handlebar: Marin Butted Alloy, Compact 12º Flared Drop
- Stem: Marin 3D Forged Alloy
- Grips: Marin Comfort Tape
- Headset: FSA No.8D, Sealed Cartridge Bearings
- Seatpost: Marin Alloy, 27.2mm
- Saddle: Marin Beyond Road Concept
- Pedals: Commute Platform.
Technology
Beyond Road Geometry
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off-pavement use.
Steel Frame Construction
The Nicasio uses Series 2 or Series 1 butted 4130 CrMo frames with disc brakes, full fender, and rack mounts, and two to three bottle bosses.
Disc Brakes
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
Tire Clearance
The Nicasio frame and fork have clearance for up to 700C x 40mm or 650B x 47mm tires. The Nicasio 2 as built with a front derailleur can accommodate up to 700 x 35mm tires.
Geometry and Size Guide
| 47 | 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|---|
| STACK | 534.57 | 541.26 | 555.4 | 574.52 | 590.64 | 609.72 | 619.25 |
| REACH | 349.75 | 359.8 | 360.48 | 378.42 | 384.42 | 398.59 | 404.75 |
| HEADTUBE ANGLE | 70 | 70.5 | 70.5 | 72 | 72.5 | 72.5 | 72.5 |
| HEADTUBE LENGTH | 125 | 130 | 145 | 155 | 170 | 190 | 200 |
| SEATTUBE ANGLE (ACTUAL) | 74.5 | 74 | 73.5 | 73.5 | 73 | 73 | 72.5 |
| SEATTUBE LENGTH | 440 | 470 | 490 | 510 | 530 | 550 | 570 |
| TOPTUBE (EFFECTIVE) | 498 | 515 | 525 | 545 | 565 | 585 | 600 |
| BOTTOM BRACKET HEIGHT | 269 | 269 | 269 | 269 | 269 | 269 | 269 |
| BOTTOM BRACKET DROP | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| CHAINSTAY | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Wheelbase | 992.55 | 1000.22 | 993.92 | 999.2 | 1008.92 | 1029.1 | 1038.26 |
| STANDOVER HEIGHT | 697.12 | 721.09 | 741.53 | 758.79 | 777.05 | 796.2 | 812.46 |
| FORK OFFSET | 57 | 57 | 57 | 45 | 45 | 45 | 45 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 400 | 400 | 420 | 420 | 440 | 440 | 440 |
| STEM LENGTH | 75 | 75 | 75 | 75 | 90 | 90 | 90 |
| CRANK LENGTH | 170 | 170 | 170 | 175 | 175 | 175 | 175 |
*All lengths in millimeters
